cylinder explosion pressure gauge

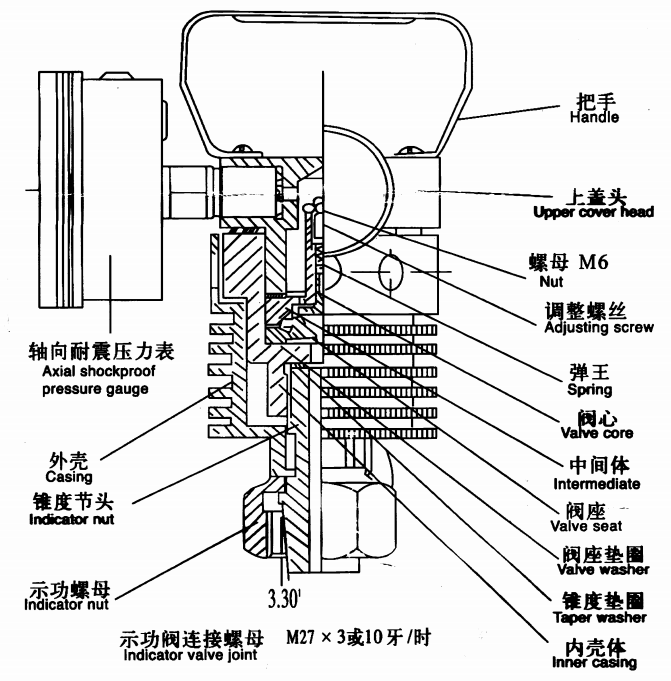

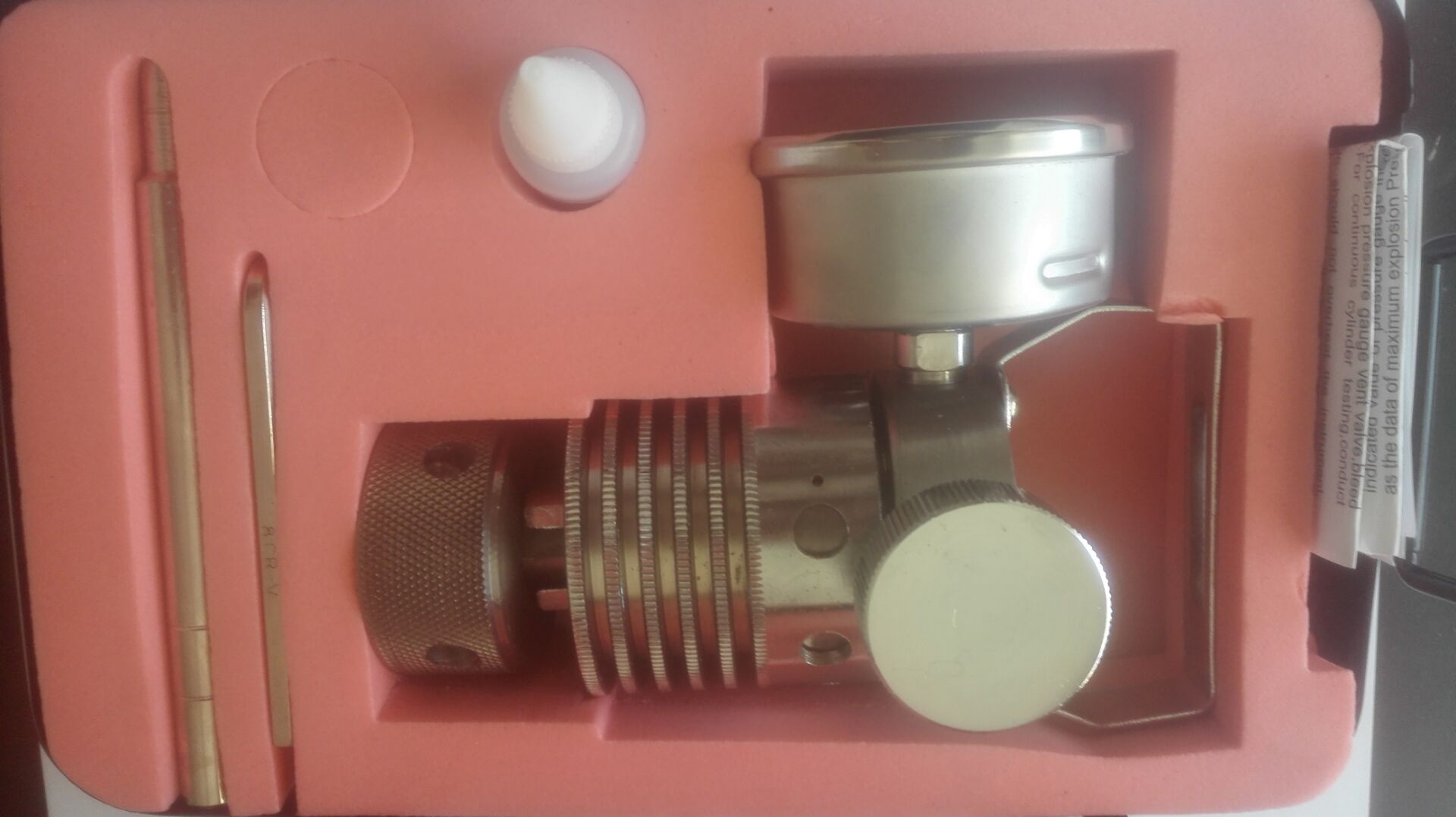

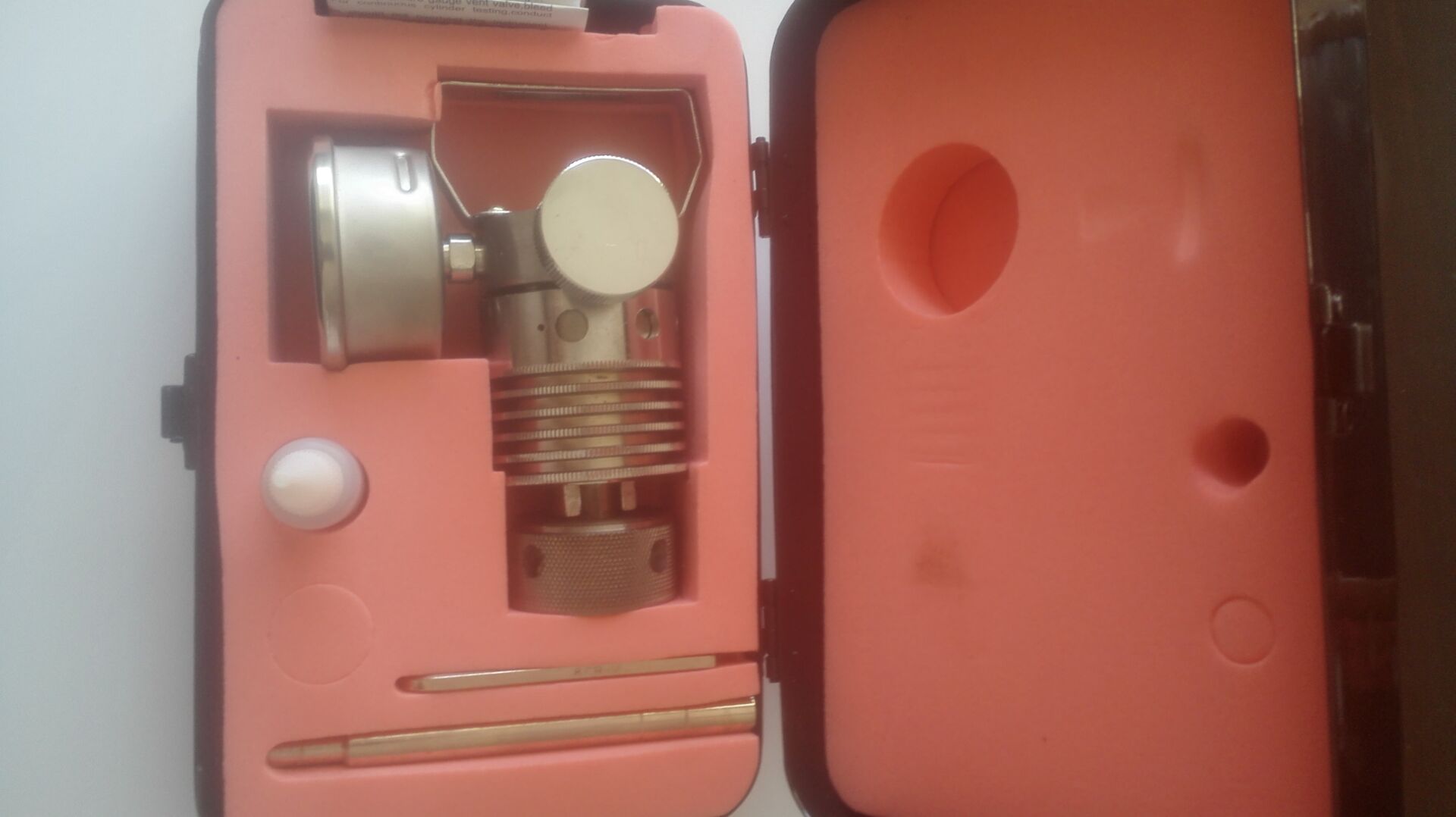

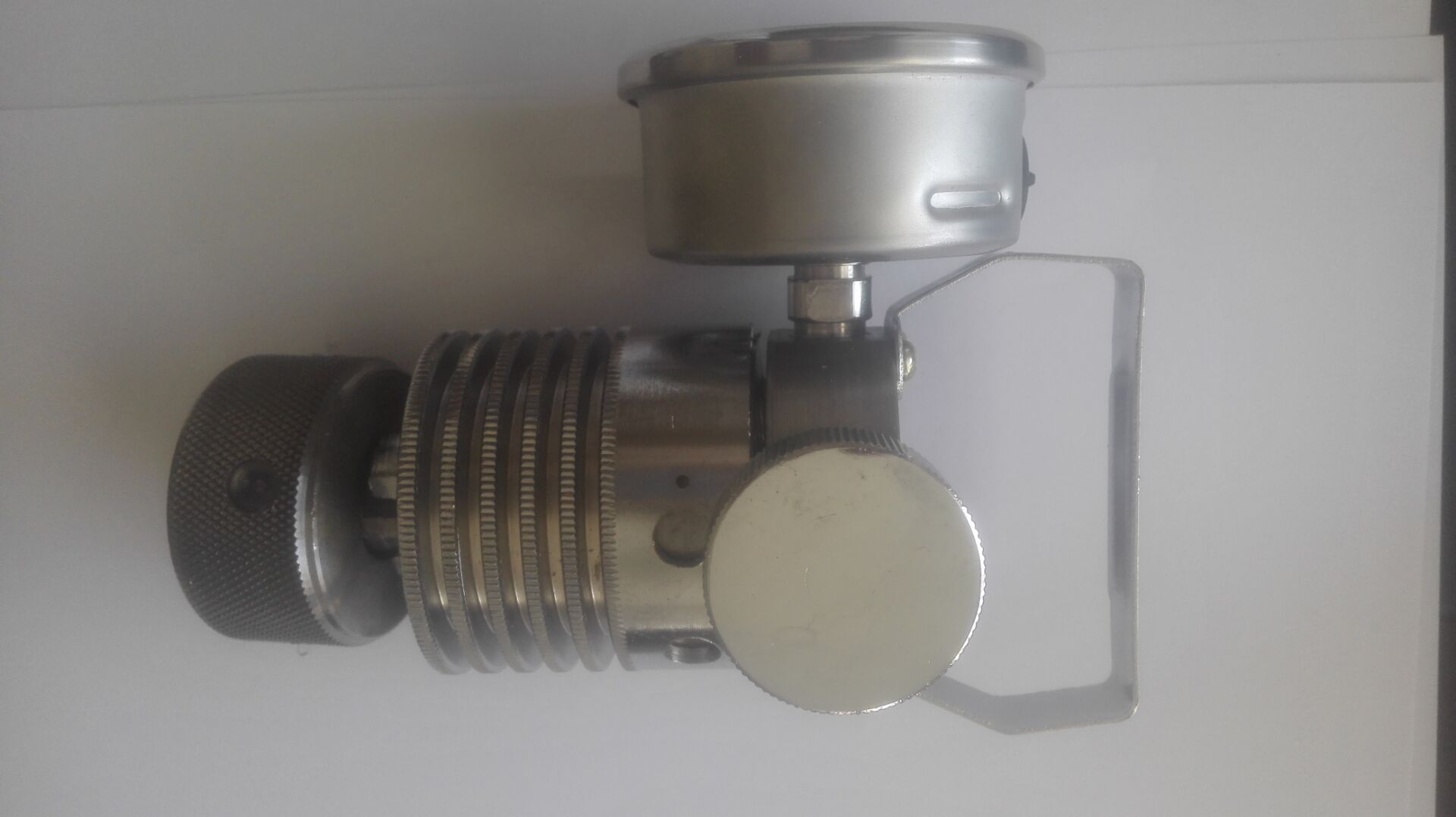

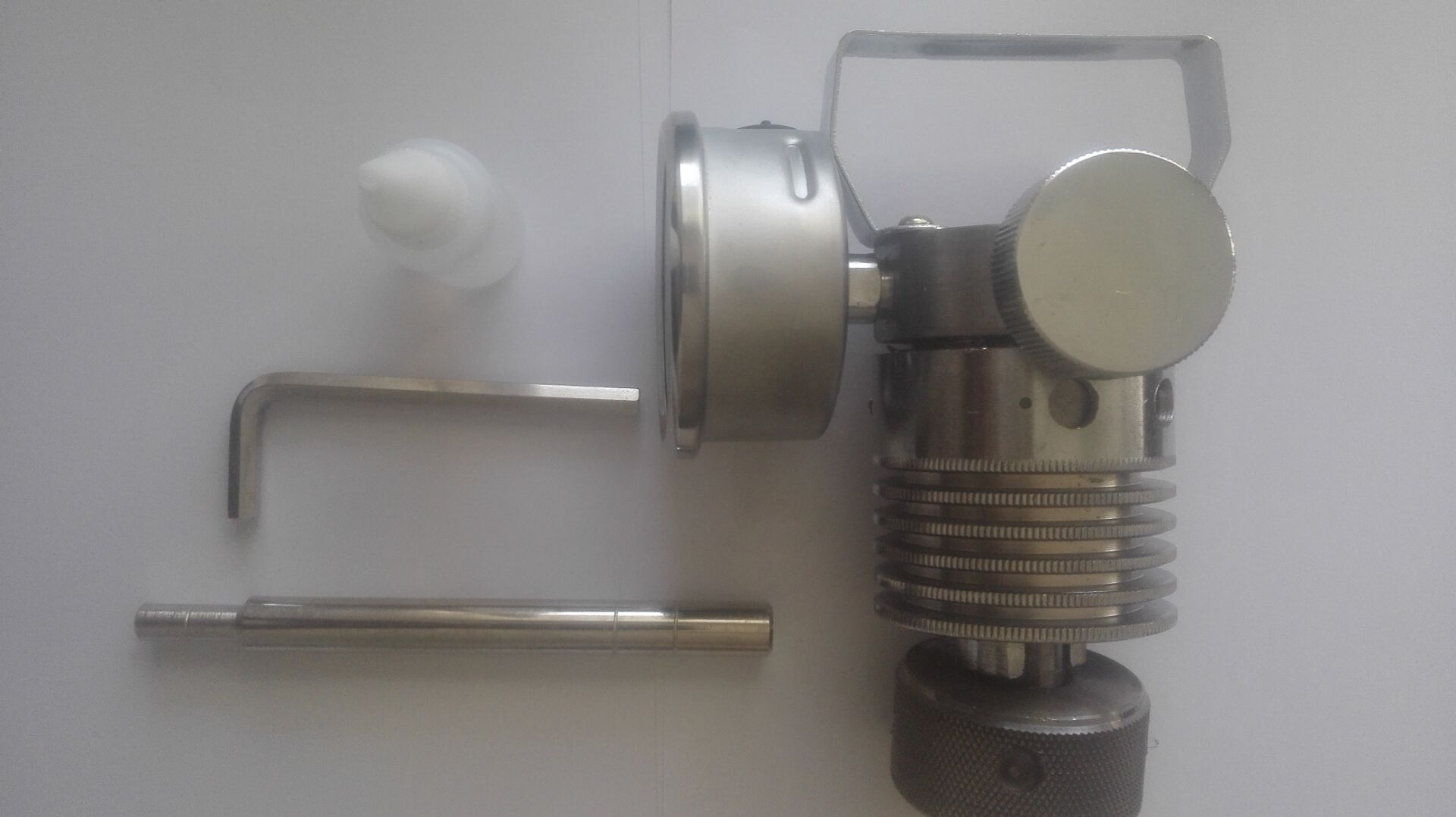

 Model Y-60 cylinder explosion pressure gauge is one of the up-to-date varieties introduced from abroad,it has small size,fine structure ,easy to use,and is completely features stable and accuracy reading,durable ,safe and reliable.It is an essential tool instrument for medium and large scale diesel engine to detect maximum explosion pressure .


Main technical data are as follows:

Measurement specification:0-10Mpa,0-16 Mpa,0-20 Mpa,0-25 Mpa

Maximum working pressure :2/3 of upper measurment valve.

Accuracy class:Class 1.6 ,Class 2.5

Airtightness of instrument: When pressurize to maximum working pressure,pressure dropper minute does not exceed 10% initial pressure.
